MLV-6 vibration velocity sensor , is the 7 generation product type 8 liter, can directly replace the Schenck company VS-06X series vibration speed sensor
The frequency response: 5 ~ 1000Hz (3dB)
Sensitivity: 100.0mv / mm / S-1 + 5%
(measured at 80Hz, 10mm / s)
The amplitude linearity: <3%
The transverse sensitivity ratio: <5%
The maximum displacement: 1mm (Dan Fengzhi)
The work direction: in the sensor mounting surface below 0 degrees
MLV-6H 90 + 2.5 degree (horizontal type)
MLV-6V 0 + 2.5 degrees (vertical type)
The output resistance is less than or equal to 5K.
Insulation resistance: 2M ohm / >
The output floating output terminal. When the sensor base is impacted by an impact force,
The output of A core is (+), and the output of B is (-).

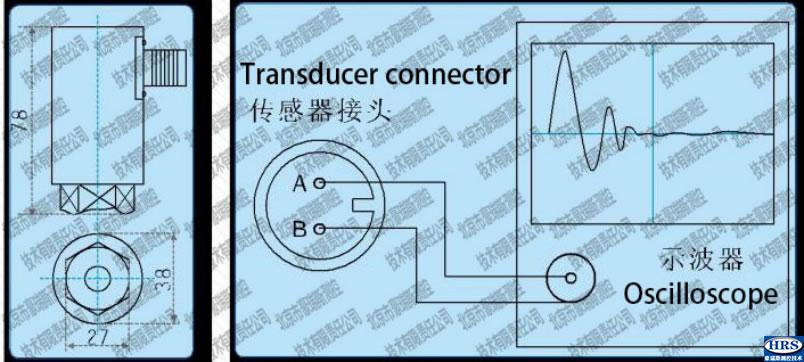

Access oscilloscope, A core, B grounding, waveform as shown:

The environmental conditions: dust, moisture-proof, anti oil
- weight: About 350g
The installation mode:
A stud bolt is fixed
Bolt specification: M10 * 1.5
Or customized according to customer requirements.
- order model:
MLV-6H (horizontal type)
MLV-6V (vertical type)
The temperature range:
Standard type: 30 ~ 120 C

Adopts stainless steel seal welding
