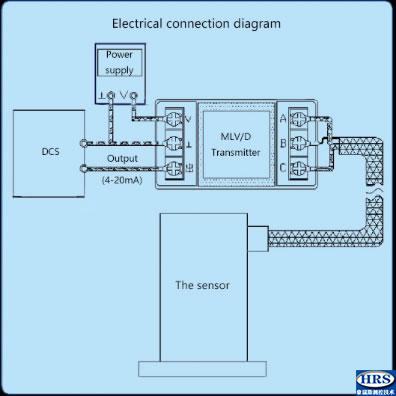

The transmitter is used with MLV series vibration velocity sensor. Monitor the absolute vibration of rotating machinery, such as bearings, chassis, rack vibration, and output vibration velocity (intensity), displacement value.

Monitoring due to the imbalance of the rotor, misalignment, loose parts and bearing damage caused by vibration increases.

Power supply: ± 24VDC supply current is not greater than 30mA.

Output: 4 ~ 20mA, 1 ~ 5V (corresponding to the user selected range)

Output accuracy: 2%

Load capacity: no more than 500Ω

Measurement parameters: vibration displacement, vibration velocity (intensity) value.

Transmitter housing:

Dimensions: 100mm × 76mm × 66mm (length × width × height)

Installation size: (64 ~ 90) × 63mm size as shown below

Install 4 M4 x 40 bolt mounting

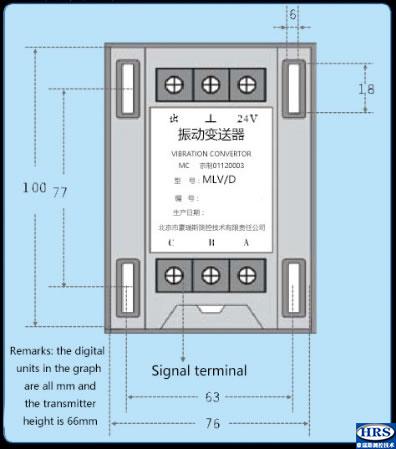

Dimension diagram

Order model specifications

A    B    C    D

MLV / D - □□ - □□ - □□ - □□

** A: □ □ Range:

00: 100 um p-p               04: 10 mm / s R

01: 200 um p-p               05: 20 mm / s R

02: 300 um p-p               06: 30 mm / s R

03: 500 um p-p               07: 100 mm / s R

99: Customer requirements

** B: □□ Power supply:

00: -24VDC

01: + 24VDC

99: Customer requirements

** C: □□ Output signal:

00: 4 ~ 20mA

01: 1 ~ 5V

** D: □□ Output mode:

00: Two-wire system

01: three-wire system

◎Dimension diagram
